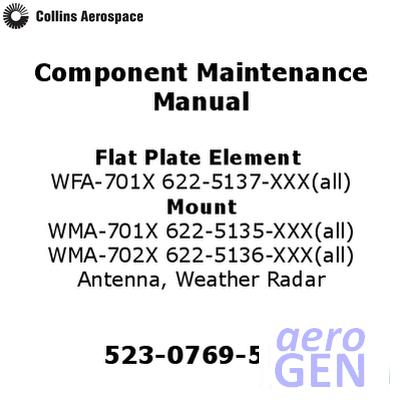

brand logo Component Maintenance Manual - Flat Plate Element - Collins Aerospace - WFA-701X, WMA-701X, WMA-702X - 523-0769563

Component maintenance manual for antenna flat plate element and pedestal for aircraft weather radar system

Component Maintenance Manual - Flat Plate Element - Collins Aerospace - WFA-701X, WMA-701X, WMA-702X - 523-0769563 thumbnailthumbnailthumbnail

Related Media

media icon Brochure

Related Products

This is used on...

product product product

Features

  • Covers these MultiScan ThreatTrack™ WXR-2100 system components:
  • Antenna flat plate element type WFA-701X
  • Antenna pedestal mount type WMA-701X
  • Antenna pedestal mount type WMA-702X

Product Detail

item
Item type Component Maintenance Manual
Item type variant Flat Plate Element
Item type variant detail Antenna
identity
Primary identity code for a product or service 523-0769563
Product brand Collins Aerospace
Product brand previous Rockwell Collins
Product model WFA-701X
WMA-701X
WMA-702X
Item code/part number 523-0769-563
company
Manufacturer or vendor division that manufactured this product Commercial Systems
system
Airlines For America Specification 2200 system and sub-system title Navigation Position Determine Independent; Weather Radar
Joint Aircraft System Component title Weather Radar
Airlines For America Specification 2200 system and sub-system title assigned by manufacturer 34-45
Airlines For America Specification 2200 system and sub-system code 34-40
Joint Aircraft System Component code 3442
information
Manufacturer-assigned information identity code 34-45-22
Information use status Active
Comment as required 5230777804 works with
information publish
Information output media form; primary Paper
Information publication date; current revision; date format is to International Standards Organisation standard 8601/European Norm 28601; YYYY-MM-DD 2013-02-25
Revision level 37
