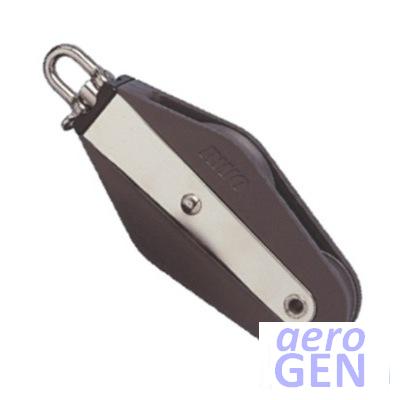

Block - Vang/tackle Fiddle Double Plain - RWO - Nova - R7521

High performance and strength block with compact design

Block - Vang/tackle Fiddle Double Plain - RWO - Nova - R7521

Related Media

media icon High Resolution Image
Sheave diameter 1.1 in / 28 mm2.24 in / 57 mm
Rope/line diameter 8 mm12 mm
Primary method of attachment Fixed 2-position, Shackle strapSwivel, Clevis/fork removable pin

Features

  • Well designed, light and stylish
  • Stainless steel strap side plates for strength
  • Self-lubricating acetyl plastic sheaves
  • Swivelstat allows block to:lock in front, side position or left to swivel freely

Product Detail

item
Item type Block
Item type variant Fiddle
Item type variant detail Vang/tackle
identity
Primary identity code for a product or service R7521
Product brand RWO
Product model Nova
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 3 1/2 in
89 mm
Rope/line diameter 12 mm
Sheave diameter 2.24 in
57 mm
Nett weight 0.19 kg
0.419 lb
mechanical
Average breaking force 1667 daN
1700 kg
3747 lb
Maximum safe working force 834 daN
850 kg
1873 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Fixed 2-position
Shackle strap
vessel
Boat length overall/LOA 0 to 2590 m
0 to 8500 ft
applicable vessel
Types of use Sheet main sportboats
Sheet main dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Sheet main yacht
Vang/kicker yacht race
Vang/kicker yacht
Barbour hauler
Type of boat Dinghies cruising
Dayboats cruising
appearance
Primary colour name Grey
Primary colour Grey
Manufacturer secondary colour Light grey
Secondary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
