Block - Vang/tackle Fiddle Double Plain - RWO - Nova - R7221

High performance and strength block with compact design

Block - Vang/tackle Fiddle Double Plain - RWO - Nova - R7221
Sheave diameter 1.1 in / 28 mm2.24 in / 57 mm
Rope/line diameter 8 mm12 mm
Primary method of attachment Fixed 2-position, Shackle strapSwivel, Clevis/fork removable pin

Features

  • Well designed, light and stylish
  • Stainless steel strap side plates for strength
  • Self-lubricating acetyl plastic sheaves

Description

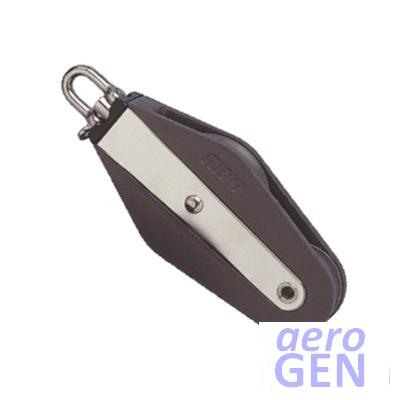

NOTE: Image is Swivelstat version; product on offer has standard swivel

Product Detail

item
Item type Block
Item type variant Fiddle
Item type variant detail Vang/tackle
identity
Primary identity code for a product or service R7221
Product brand RWO
Product model Nova
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 1.93 in
49 mm
Rope/line diameter 8 mm
Sheave diameter 1.1 in
28 mm
Nett weight 0.05 kg
0.11 lb
mechanical
Average breaking force 834 daN
850 kg
1873 lb
Maximum safe working force 422 daN
430 kg
948 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Swivel
Clevis/fork removable pin
applicable vessel
Types of use Sheet main sportboats
Sheet main dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Sheet main yacht
Control line yacht race
Control line yacht
Out/downhaul yacht race
Uphaul yacht race
Out/downhaul yacht
Uphaul yacht
Vang/kicker yacht race
Vang/kicker yacht
Barbour hauler
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Grey
Primary colour Grey
Manufacturer secondary colour Light grey
Secondary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
