Upgrade your old fiddle block with one of these great value Barton Marine blocks

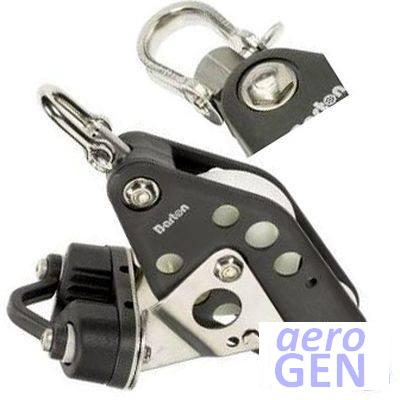

Block - Vang/tackle Fiddle Double Plain - Barton - Variloc - 5681
Type of bearing BallPlain
Sheave diameter 2.28 in / 58 mm2.52 in / 64 mm2.76 in / 70 mm
Rope/line diameter 10 mm12 mm14 mm
Relative size Size 3Size 4Size 5Size 6Size 7

Features

  • Rugged construction
  • High quality injection moulded side plates
  • Load carrying components made of high grade stainless steel
  • Side plates through-bolted and riveted
  • Plain nylon bearing; high load; low friction
  • Optimium positioning with 'Varilok Multi Head' s

Description

Low friction sheave material runs on a large diameter bearing, delivering free running under the highest loads.

The 'Variloc Multi Head' swivel can be locked at 30 degree positions in relation to sheave. Inverting the lock converts to swivel mode. Suppli

Product Detail

item
Item type Block
Item type variant Fiddle
Item type variant detail Vang/tackle
identity
Primary identity code for a product or service 5681
Product brand Barton
Product model Variloc
marketing
Relative size Size 5
material
Primary material simple composition Composite
Primary material composition Composite
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition Brass
measurement
Overall length 8.07 in
205 mm
Width of sheave or pulley 0.669 in
17 mm
Rope/line diameter 12 mm
Sheave diameter 2.52 in
64 mm
1 1/2 in
38 mm
Nett weight 0.508 kg
1.12 lb
mechanical
Average breaking force 1471 daN
1500 kg
3306 lb
Maximum safe working force 736 daN
750 kg
1653 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Swivel 12-position
Shackle wire
Secondary method of attachment Becket
Line hold method Cam cleat
applicable vessel
Types of use Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Sheet main yacht
Vang/kicker yacht race
Vang/kicker yacht
Leads
Type of boat Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
Cruiser medium
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
