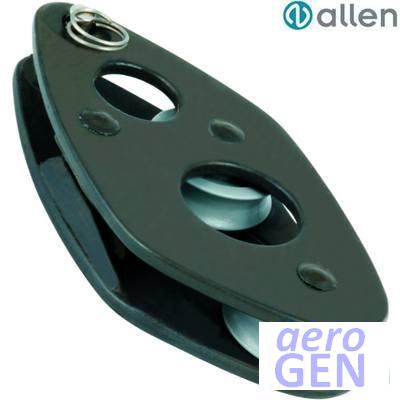

Block - Vang/tackle Fiddle Double Plain - Allen - A0165LZ

Die cast aluminium block; simple, robust

Block - Vang/tackle Fiddle Double Plain - Allen - A0165LZ
Primary method of attachment Clevis/fork removable pin - JammerCurved key - Jammer

Features

  • Designed for simple purchase systems
  • Pressure die cast anodised aluminium cheeks
  • Excellent strength and durability

Product Detail

item
Item type Block
Item type variant Fiddle
Item type variant detail Vang/tackle
identity
Primary identity code for a product or service A0165LZ
Product brand Allen
marketing
Manufacturer basic model code 0165LZ
material
Primary material simple composition Aluminium
Primary material composition Aluminium alloy
Coating composition Anodised
Sheave material composition Acetal resin
Bearing composition SAE/AISI 316 EN 1.4401 A4 stainless
measurement
Overall length 3.66 in
93 mm
Width of sheave or pulley 0.276 in
7 mm
Rope/line diameter 4 to 6 mm
Sheave diameter 0.984 in
25 mm
Nett weight 0.061 kg
0.134 lb
mechanical
Average breaking force 608 daN
620 kg
1366 lb
Maximum safe working force 304 daN
310 kg
683 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Clevis/fork removable pin
Line hold method Jammer
applicable vessel
Types of use Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Vang/kicker yacht race
Vang/kicker yacht
Type of boat Dinghies cruising
Multihull small
appearance
Primary colour name Charcoal
Primary colour Grey
Product
Code for alternate product HA.165LZ,HA165LZ
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
