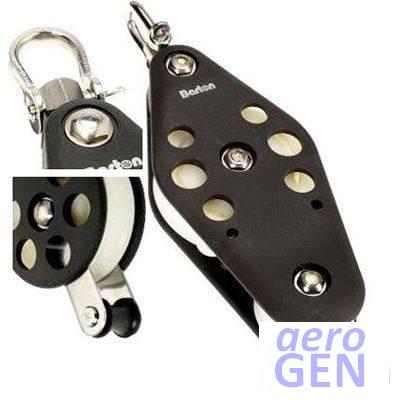

brand logo Block - Vang/tackle Fiddle Double Ball - Barton - Variloc - 17481

Double yacht ball block; robust construction so ideal for vang

Block - Vang/tackle Fiddle Double Ball - Barton - Variloc - 17481
Type of bearing BallPlain
Sheave diameter 2.28 in / 58 mm2.52 in / 64 mm2.76 in / 70 mm
Rope/line diameter 10 mm12 mm14 mm
Relative size Size 3Size 4Size 5Size 6Size 7

Features

  • Rugged construction
  • High quality injection moulded side plates
  • Load carrying components made of high grade stainless steel
  • Side plates through-bolted and riveted
  • Ball bearing; low friction even under high load
  • Optimium positioning with 'Varilok Multi Head

Description

Has a super-low friction ball race system, running on a large diameter centre boss which allows the fitment of more load-bearing balls, to ensure extremely low friction performance, even under high loads

The 'Variloc Multi Head' swivel can be locked at 3

Product Detail

item
Item type Block
Item type variant Fiddle
Item type variant detail Vang/tackle
identity
Primary identity code for a product or service 17481
Product brand Barton
Product model Variloc
marketing
Relative size Size 7
material
Primary material simple composition Composite
Primary material composition Composite
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 9.8 in
249 mm
Width of sheave or pulley 0.669 in
17 mm
Rope/line diameter 14 mm
Sheave diameter 2.76 in
70 mm
1.73 in
44 mm
Nett weight 0.43 kg
0.948 lb
mechanical
Maximum safe rolling force 858 daN
875 kg
1929 lb
Average breaking force 2942 daN
3000 kg
6613 lb
Maximum safe working force 1471 daN
1500 kg
3306 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Ball
arrangement
Primary method of attachment Swivel 12-position
Shackle wire
Secondary method of attachment Becket
applicable vessel
Types of use Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Sheet main yacht race
Sheet main yacht
Vang/kicker yacht race
Vang/kicker yacht
Type of boat Cruiser large
Multihull large
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
