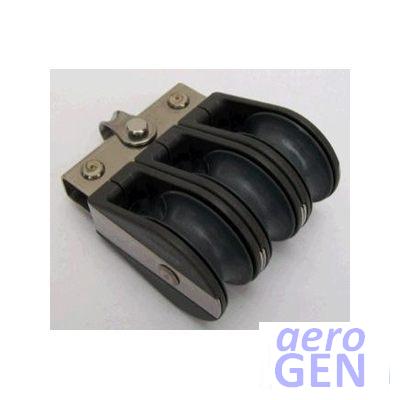

Block - Triple Plain - RWO - Nova - R7416

High performance and strength block with compact design

Block - Triple Plain - RWO - Nova - R7416
Sheave count DoubleSingleTriple
Type of bearing BallBall doublePlain
Sheave diameter 0.748 in / 19 mm1 1/2 in / 38 mm1.1 in / 28 mm1.77 in / 45 mm2.24 in / 57 mm
Rope/line diameter 6 mm8 mm10 mm12 mm
Primary method of attachment Fixed 2-position, Shackle strapFixed 2-position, Shackle strap - BecketFixed 2-position, Shackle strap - Becket - Ratchet clutchFixed 2-position, Shackle strap - Becket removable pin offcentreFixed 2-position, Strap fixed eye - Becket removable pinFixed, Eye strapFixed, Eye strap - Becket removable pinFixed, Eye wireFixed, Shackle strapFixed, Shackle strap - BecketFixed, Shackle strap - Becket offcentreFixed, Shackle strap - Becket removable pin offcentreFixed, Strap fixed eyeSwivel, Clevis/fork removable pinSwivel, Clevis/fork removable pin - BecketSwivel, Clevis/fork removable pin - Becket removable pinSwivel, Clevis/fork removable pin - Becket removable pin - Cam cleat - FairleadSwivel, Eye pillarSwivel, Eye pillar - Becket removable pin

Features

  • Well designed, light and stylish
  • Stainless steel strap side plates for strength
  • Self-lubricating acetyl plastic sheaves

Product Detail

item
Item type Block
identity
Primary identity code for a product or service R7416
Product brand RWO
Product model Nova
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 2.95 in
75 mm
Rope/line diameter 10 mm
Sheave diameter 1.77 in
45 mm
Nett weight 0.25 kg
0.551 lb
mechanical
Average breaking force 1176 daN
1200 kg
2645 lb
Maximum safe working force 588 daN
600 kg
1322 lb
construction
Rope type Polyester
Sheave count Triple
Type of bearing Plain
arrangement
Primary method of attachment Fixed
Shackle strap
applicable vessel
Types of use Sheet main sportboats
Sheet jib sportboats
Sheet main dinghy/dinghies
Sheet jib dinghy/dinghies
Sheet spin/asym sportboats
Sheet spin/asym dinghy/dinghies
Type of boat Dinghies cruising
Dayboats cruising
Cruiser small
appearance
Primary colour name Grey
Primary colour Grey
Manufacturer secondary colour Light grey
Secondary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
