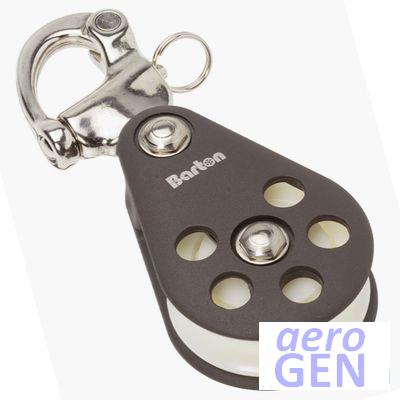

brand logo Block - Single Plain - Barton - 6140

Rugged construction high-load sailboat block

Block - Single Plain - Barton - 6140
Type of bearing BallPlain
Sheave diameter 1.38 in / 35 mm1.77 in / 45 mm2.13 in / 54 mm2.28 in / 58 mm2.48 in / 63 mm2.76 in / 70 mm
Rope/line diameter 8 mm10 mm12 mm14 mm
Relative size Size 2Size 3Size 4Size 5Size 6Size 7

Features

  • Rugged construction
  • High quality injection moulded side plates
  • Load carrying components made of high grade stainless steel
  • Side plates through-bolted and riveted
  • Plain nylon bearing; high load; low friction

Description

Low friction sheave material runs on a large diameter bearing, delivering free running under the highest loads

Product Detail

item
Item type Block
identity
Primary identity code for a product or service 6140
Product brand Barton
marketing
Relative size Size 6
material
Primary material simple composition Composite
Primary material composition Composite
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition Brass
measurement
Overall length 6.69 in
170 mm
Width of sheave or pulley 0.433 in
11 mm
Rope/line diameter 12 mm
Sheave diameter 2.48 in
63 mm
Nett weight 0.292 kg
0.644 lb
mechanical
Average breaking force 1961 daN
2000 kg
4409 lb
Maximum safe working force 981 daN
1000 kg
2204 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Swivel
Shackle snap stainless cast
applicable vessel
Types of use Uphaul yacht race
Uphaul yacht
Vang/kicker yacht
Type of boat Cruiser large
Multihull large
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
