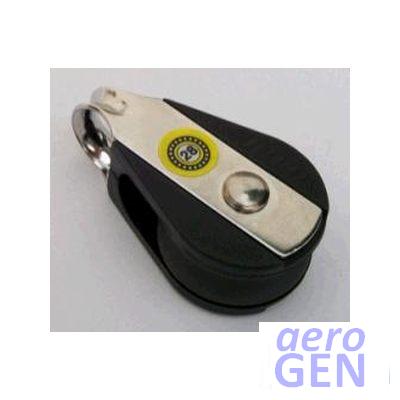

Block - Single Ball Double - RWO - Macro - R5201

High performance and strength block with compact design

Block - Single Ball Double - RWO - Macro - R5201
Sheave count DoubleSingleTriple
Type of bearing BallBall doublePlain
Sheave diameter 0.748 in / 19 mm1 1/2 in / 38 mm1.1 in / 28 mm1.77 in / 45 mm2.24 in / 57 mm
Rope/line diameter 6 mm8 mm10 mm12 mm
Primary method of attachment Fixed 2-position, Shackle strapFixed 2-position, Shackle strap - BecketFixed 2-position, Shackle strap - Becket - Ratchet clutchFixed 2-position, Shackle strap - Becket removable pin offcentreFixed 2-position, Strap fixed eye - Becket removable pinFixed, Eye strapFixed, Eye strap - Becket removable pinFixed, Eye wireFixed, Shackle strapFixed, Shackle strap - BecketFixed, Shackle strap - Becket offcentreFixed, Shackle strap - Becket removable pin offcentreFixed, Strap fixed eyeSwivel, Clevis/fork removable pinSwivel, Clevis/fork removable pin - BecketSwivel, Clevis/fork removable pin - Becket removable pinSwivel, Clevis/fork removable pin - Becket removable pin - Cam cleat - FairleadSwivel, Eye pillarSwivel, Eye pillar - Becket removable pin

Features

  • Twin row composite ball bearing; minimal friction and long working life

Product Detail

item
Item type Block
identity
Primary identity code for a product or service R5201
Product brand RWO
Product model Macro
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 1.93 in
49 mm
Rope/line diameter 8 mm
Sheave diameter 1.1 in
28 mm
Nett weight 0.02 kg
0.0441 lb
mechanical
Maximum safe rolling force 137 daN
140 kg
309 lb
Average breaking force 834 daN
850 kg
1873 lb
Maximum safe working force 417 daN
425 kg
937 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Ball double
arrangement
Primary method of attachment Fixed
Eye strap
applicable vessel
Types of use Out/downhaul sportboats
Out/downhaul dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Barbour hauler
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Black
Primary colour Black
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
