Strong and lightweight rope block; multipurpose use

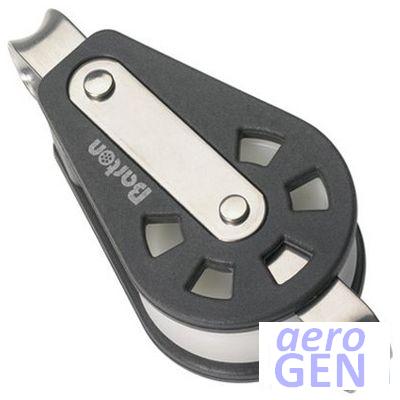

Block - Single Ball - Barton - 13111

Related Media

media icon Review
Type of bearing BallPlain
Sheave diameter 0.787 in / 20 mm1.18 in / 30 mm1.38 in / 35 mm1.77 in / 45 mm2.13 in / 54 mm2.28 in / 58 mm2.48 in / 63 mm2.76 in / 70 mm
Rope/line diameter 2-5 mm8 mm10 mm12 mm14 mm
Primary method of attachment Fixed, Eye strap - BecketFixed, Eye strap - Becket clevis pin
Relative size Size 0Size 1Size 2Size 3Size 4Size 5Size 6Size 7

Features

  • Rugged construction
  • High quality injection moulded side plates
  • Load carrying components made of high grade stainless steel
  • Side plates through-bolted and riveted
  • Ball bearing low friction even under high load

Description

Has a super-low friction ball race system, running on a large diameter centre boss which allows the fitment of more load-bearing balls, to ensure extremely low friction performance, even under high loads

Ideal for mainsheet, vang, lead blocks or wherever

Product Detail

item
Item type Block
identity
Primary identity code for a product or service 13111
Product brand Barton
marketing
Relative size Size 3
material
Primary material simple composition Composite
Primary material composition Composite
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 4.21 in
107 mm
Width of sheave or pulley 0.512 in
13 mm
Rope/line diameter 10 mm
Sheave diameter 1.77 in
45 mm
Nett weight 0.088 kg
0.194 lb
mechanical
Maximum safe rolling force 265 daN
270 kg
595 lb
Average breaking force 755 daN
770 kg
1697 lb
Maximum safe working force 378 daN
385 kg
849 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Ball
arrangement
Primary method of attachment Fixed
Eye strap
Secondary method of attachment Becket
applicable vessel
Types of use Sheet main sportboats
Sheet jib sportboats
Sheet main dinghy/dinghies
Sheet jib dinghy/dinghies
Sheet spin/asym sportboats
Sheet spin/asym dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Sheet jib yacht
Sheet genoa yacht
Sheet spin/asym yacht race
Sheet spin/asym yacht
Vang/kicker yacht race
Vang/kicker yacht
Leads
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Charcoal
Primary colour Grey
entity
Recommended by Voiles et Voiliers - No.481- March/Mars 2011
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
