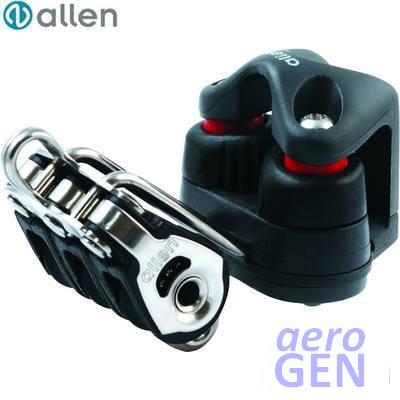

Block - Sheet Triple Ball - Allen - Dynamic Micro - A2027

Multi-use deck block in nylon; modern design, strong, light and effective

Block - Sheet Triple Ball - Allen - Dynamic Micro - A2027
Sheave count SingleTriple
Sheave diameter 0.787 in / 20 mm1.18 in / 30 mm1.57 in / 40 mm2.36 in / 60 mm
Rope/line diameter 2.5-6 mm5-14 mm6-10 mm6-14 mm
Primary method of attachment Fixed, Eye strap - Becket - Cam cleatFixed, Eye strap, Bolted assemblyFixed, Eye wire - Becket - Cam cleatInline 2-position or 90 deg to sheave, Shackle wire reversed removable - Ratchet clutchInline 2-position or 90 deg to sheave, Shackle wire reversed removable - Ratchet clutch - Cam cleatSwivel, Shackle wire

Features

  • Eye strap is cold forged; rope-friendly; greater articulation
  • Stainless cheeks, ball bearings and sheave axle
  • Optimised rope guides
  • Large cutouts to reduce weight
  • Easy to rinse clean
  • Open axle gives strength in critical load area
  • Open axle allows rope tie

Description

The narrow side strap allows excellent articulation

Lightening holes reduce weight and allow easy access to flush the stainless steel bearing system

Large central hole enables line to be tied through for cascade of other purchase systems; this negates t

Product Detail

item
Item type Block
Item type variant Sheet
identity
Primary identity code for a product or service A2027
Product brand Allen
Product model Dynamic Micro
marketing
Manufacturer basic model code 2027
material
Primary material simple composition Composite
Primary material composition Nylon-fibreglass
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition SAE/AISI 316 EN 1.4401 A4 stainless
measurement
Overall length 3.11 in
79 mm
Width of sheave or pulley 0.276 in
7 mm
Rope/line diameter 2.5 to 6 mm
Sheave diameter 0.787 in
20 mm
Nett weight 0.087 kg
0.192 lb
mechanical
Maximum safe rolling force 314 daN
320 kg
705 lb
Average breaking force 637 daN
650 kg
1432 lb
Maximum safe working force 319 daN
325 kg
716 lb
construction
Rope type Polyester
Sheave count Triple
Type of bearing Ball
arrangement
Primary method of attachment Fixed
Eye wire
Secondary method of attachment Becket
Line hold method Cam cleat
vessel
Boat class 49er
applicable vessel
Types of use Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Vang/kicker yacht race
Vang/kicker yacht
Cunningham
Leads
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Multihull small
appearance
Primary colour name Charcoal
Primary colour Grey
Product
Code for alternate product HA2027
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
