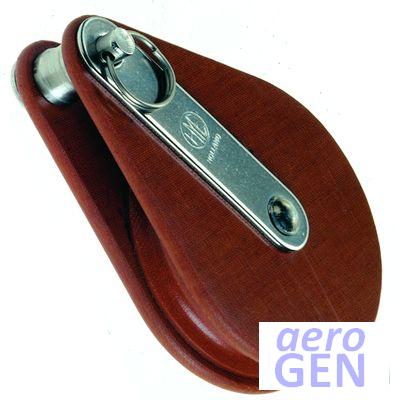

Block - Multi-purpose Lead Deck Single Plain - HYE - Traditional Plastic Laminated - 40508

Superior quality, very robust well-priced block made of phenolic resin

Block - Multi-purpose Lead Deck Single Plain - HYE - Traditional Plastic Laminated - 40508

Related Media

media icon "Tufnol" Wikipedia Article
Sheave diameter 1.18 in / 30 mm1.38 in / 35 mm1.97 in / 50 mm2.48 in / 63 mm3.94 in / 100 mm
Rope/line diameter 8 mm10 mm12 mm14 mm16 mm
Primary method of attachment Fixed, Clevis/fork removable pinSwivel, Shackle strap reversed removable - Flat

Features

  • Aesthetically pleasing
  • Extremely durable and robust
  • Cheeks and sheaves of plastic laminate
  • Strong frame construction of stainless steel
  • Brass bush bearings
  • Breaking loads tested and certified

Description

Breaking loads tested and certified by Germainscher Lloyd, Germany.

Product Detail

item
Item type Block
Item type variant Lead deck
Item type variant detail Multi-purpose
identity
Primary identity code for a product or service 40508
Product brand HYE
Product model Traditional Plastic Laminated
material
Primary material simple composition Composite
Primary material composition Phenolic
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 304 EN 1.4301 stainless
Sheave material composition Tufnol
Bearing composition Brass
measurement
Rope/line diameter 8 mm
Sheave diameter 3.94 in
100 mm
mechanical
Average breaking force 2010 daN
2049 kg
4518 lb
Maximum safe working force 1005 daN
1025 kg
2259 lb
construction
Rope type Wire
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Fixed
Clevis/fork removable pin
applicable vessel
Types of use Control line sportboats
Control line dinghy/dinghies
Backstay
Backstay
Control line yacht race
Control line yacht
appearance
Primary colour name Brown
Primary colour Brown
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
