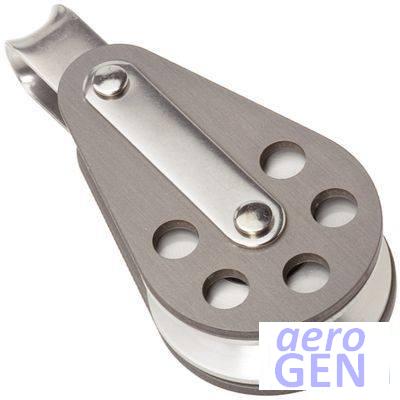

brand logo Block - Multi-purpose Lead Deck Single Plain - Barton - 91600

High-strength block for wire ropes or high loads

Block - Multi-purpose Lead Deck Single Plain - Barton - 91600
Sheave diameter 1 1/2 in / 38 mm2.01 in / 51 mm2.48 in / 63 mm
Rope/line diameter 4 mm5 mm
Primary method of attachment Side face/cheek plate - FlatStrap fixed eyeUpright

Description

Sheaves are precision turned aluminium alloy bar and silver anodised, running on nylon bearings to reduce friction under load. Mount and pin are all from high grade stainless steel

Attach with 5 mm diameter fasteners, 4-off

Product Detail

item
Item type Block
Item type variant Lead deck
Item type variant detail Multi-purpose
identity
Primary identity code for a product or service 91600
Product brand Barton
material
Primary material simple composition Stainless/SS
Primary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Secondary material simple composition Aluminium
Secondary material composition Aluminium alloy
Sheave material composition Aluminium - anodised
Bearing composition Nylon
measurement
Width of sheave or pulley 0.591 in
15 mm
Rope/line diameter 4 mm
Sheave diameter 2.01 in
51 mm
Nett weight 0.155 kg
0.342 lb
mechanical
Average breaking force 1716 daN
1750 kg
3858 lb
Maximum safe working force 858 daN
875 kg
1929 lb
construction
Rope type Wire
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Strap fixed eye
applicable vessel
Types of use Backstay sportboats
Backstay dinghy/dinghies
Leads
Type of boat Dinghies/Sportsboats racing
Cruiser large
Multihull large
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
