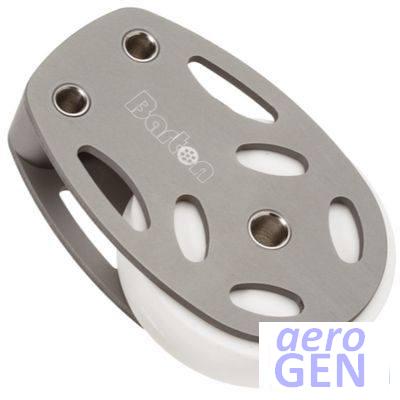

brand logo Block - Lead Deck Single Plain - Barton - High Load - 82995

Rugged construction high-load sailboat block

Block - Lead Deck Single Plain - Barton - High Load - 82995

Related Media

media icon Dimension Set
Primary material composition Aluminium alloyStainless steel
Sheave diameter 1.97 in / 50 mm2.56 in / 65 mm3.35 in / 85 mm
Rope/line diameter 12 mm16 mm18 mm
Primary method of attachment Shackle wire reversed removableSide faceSide face - Cam cleatSwivel, Shackle wire reversed removable

Description

Anodising used - 'Spectra' type, has high ultraviolet light stability and durability, maintaining protection and appearance for years

Sheave is precision machine turned with a profile that is kind to modern ropes

Hollow stainless steel rivets allow for

Product Detail

item
Item type Block
Item type variant Lead deck
identity
Primary identity code for a product or service 82995
Product brand Barton
Product model High load
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Secondary material simple composition Aluminium
Secondary material composition Aluminium alloy
Coating composition Anodised
Sheave material composition Ertalyte
Bearing composition Stainless steel
measurement
Overall length 3.11 in
79 mm
Body length 3.11 in
79 mm
Width of sheave or pulley 0.591 in
15 mm
Rope/line diameter 12 mm
Sheave diameter 1.97 in
50 mm
Attachment hole diameter 0.236 in
6 mm
Nett weight 0.114 kg
0.251 lb
Attachment method Fastener
Number of fasteners 3
mechanical
Average breaking force 981 daN
1000 kg
2204 lb
Maximum safe working force 490 daN
500 kg
1102 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Side face
applicable vessel
Types of use Control line sportboats
Control line dinghy/dinghies
Control line yacht race
Control line yacht
Leads
Type of boat Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
