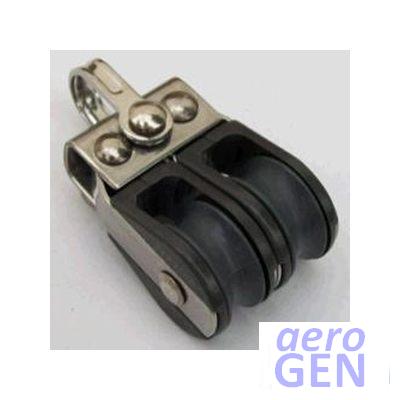

Block - Double Plain - RWO - Nova - R7111

This compact design block is for small lines everywhere on your boat

Block - Double Plain - RWO - Nova - R7111
Sheave count DoubleSingleTriple
Type of bearing BallBall doublePlain
Sheave diameter 0.748 in / 19 mm1 1/2 in / 38 mm1.1 in / 28 mm1.77 in / 45 mm2.24 in / 57 mm
Rope/line diameter 6 mm8 mm10 mm12 mm
Primary method of attachment Fixed 2-position, Shackle strapFixed 2-position, Shackle strap - BecketFixed 2-position, Shackle strap - Becket - Ratchet clutchFixed 2-position, Shackle strap - Becket removable pin offcentreFixed 2-position, Strap fixed eye - Becket removable pinFixed, Eye strapFixed, Eye strap - Becket removable pinFixed, Eye wireFixed, Shackle strapFixed, Shackle strap - BecketFixed, Shackle strap - Becket offcentreFixed, Shackle strap - Becket removable pin offcentreFixed, Strap fixed eyeSwivel, Clevis/fork removable pinSwivel, Clevis/fork removable pin - BecketSwivel, Clevis/fork removable pin - Becket removable pinSwivel, Clevis/fork removable pin - Becket removable pin - Cam cleat - FairleadSwivel, Eye pillarSwivel, Eye pillar - Becket removable pin

Features

  • Well designed, light and stylish
  • Stainless steel strap side plates for strength
  • Self-lubricating acetyl plastic sheaves

Product Detail

item
Item type Block
identity
Primary identity code for a product or service R7111
Product brand RWO
Product model Nova
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 1.38 in
35 mm
Rope/line diameter 6 mm
Sheave diameter 0.748 in
19 mm
Nett weight 0.04 kg
0.0882 lb
mechanical
Average breaking force 559 daN
570 kg
1256 lb
Maximum safe working force 279 daN
285 kg
628 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Fixed
Shackle strap
applicable vessel
Types of use Out/downhaul sportboats
Out/downhaul dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Out/downhaul yacht race
Out/downhaul yacht
Vang/kicker yacht race
Vang/kicker yacht
Barbour hauler
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Grey
Primary colour Grey
Manufacturer secondary colour Light grey
Secondary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
