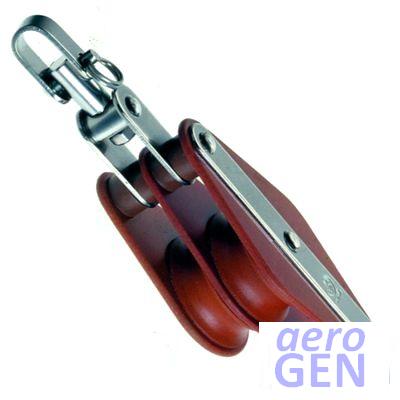

Block - Double Plain - HYE - 34516

Superior quality, very robust well-priced block made of phenolic resin

Block - Double Plain - HYE - 34516

Related Media

media icon "Phenol Formaldehyde Resin" Wikipedia Article
Sheave count DoubleSingle
Sheave diameter 1.18 in / 30 mm1.38 in / 35 mm1.97 in / 50 mm2.48 in / 63 mm
Rope/line diameter 10 mm12 mm14 mm16 mm
Primary method of attachment Fixed, Eye strapFixed, Eye strap - BecketFixed, Tang slotted holeFixed, Tang slotted hole - BecketSwivel, Shackle strapSwivel, Shackle strap - Becket

Features

  • Aesthetically pleasing
  • Extremely durable and robust
  • Cheeks and sheaves of plastic laminate
  • Strong frame construction of stainless steel
  • Brass bush bearings
  • Breaking loads tested and certified

Description

Breaking loads tested and certified by Germainscher Lloyd, Germany.

Product Detail

item
Item type Block
identity
Primary identity code for a product or service 34516
Product brand HYE
material
Primary material simple composition Composite
Primary material composition Phenolic
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 304 EN 1.4301 stainless
Sheave material composition Tufnol
Bearing composition Brass
measurement
Rope/line diameter 16 mm
Sheave diameter 2.48 in
63 mm
mechanical
Average breaking force 2010 daN
2049 kg
4518 lb
Maximum safe working force 1005 daN
1025 kg
2259 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Plain
arrangement
Primary method of attachment Swivel
Shackle strap
Secondary method of attachment Becket
applicable vessel
Types of use Vang/kicker yacht
appearance
Primary colour name Brown
Primary colour Brown
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
