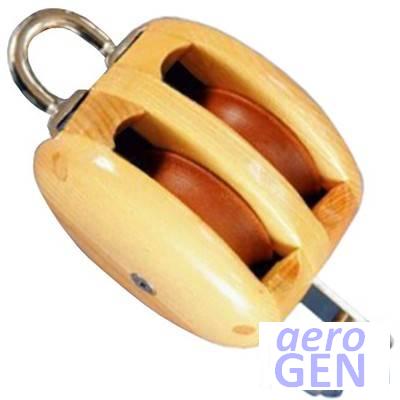

Block - Double Ball - Davey - Standard - 0612-AH-075

Yacht wooden double block; strength tested for free-running performance under high loads

Block - Double Ball - Davey - Standard - 0612-AH-075

Related Media

media icon "Fraxinus" Wikipedia Article
media icon "Phenol Formaldehyde Resin" Wikipedia Article
Sheave diameter 1.57 in / 40 mm1.97 in / 50 mm2.36 in / 60 mm
Rope/line diameter 8-10 mm10-12 mm12-14 mm

Features

  • Bindings of heavy gauge stainless steel
  • Sheaves of Laminated phenolic as standard
  • Bearings are plain for high load capacity
  • Shell of high quality ash
  • Maintenance is simple
  • Appearance is just beautiful!

Description

Developed to have the right proportions for efficient use with the design rope diameter

It is strong, simple and functional with the beauty and elegance to enhance the finest of craft

Plain bearings running on an oversized stainless steel spindle spread

Product Detail

item
Item type Block
identity
Primary identity code for a product or service 0612-AH-075
Product brand Davey
Product model Standard
material
Primary material simple composition Wood
Primary material composition Ash
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 304 EN 1.4301 stainless
Coating composition Varnish
Sheave material composition Tufnol
measurement
Body length 3 in
76.2 mm
Rope/line diameter 8 to 10 mm
Sheave diameter 1.57 in
40 mm
mechanical
Average breaking force 1471 daN
1500 kg
3306 lb
Maximum safe working force 736 daN
750 kg
1653 lb
construction
Rope type Polyester
Sheave count Double
Type of bearing Ball
arrangement
Primary method of attachment Fixed
Eye wire
applicable vessel
Types of use Sheet main yacht
Sheet jib yacht
Sheet genoa yacht
Sheet spin/asym yacht
appearance
Primary colour name Natural Ash
Primary colour Brown
Product
Code for alternate product 0612/AH/075
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
