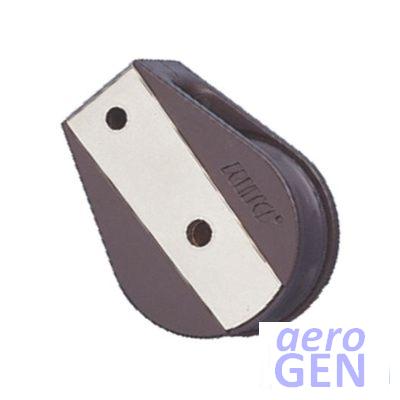

Block - Cheek Lead Deck Single Plain - RWO - Nova - R7406

High performance and strength block with compact design

Block - Cheek Lead Deck Single Plain - RWO - Nova - R7406
Sheave diameter 0.748 in / 19 mm1.1 in / 28 mm1.77 in / 45 mm
Primary method of attachment Fixed, Bracket flanged flat - FlatFixed, Side face/cheek - Flat

Features

  • Well designed, light and stylish
  • Stainless steel strap side plates for strength
  • Self-lubricating acetyl plastic sheaves
  • Swivelstat allows block to:lock in front, side position or left to swivel freely

Product Detail

item
Item type Block
Item type variant Lead deck
Item type variant detail Cheek
identity
Primary identity code for a product or service R7406
Product brand RWO
Product model Nova
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 2.95 in
75 mm
Rope/line diameter 4 to 14 mm
Sheave diameter 1.77 in
45 mm
Nett weight 0.066 kg
0.146 lb
mechanical
Average breaking force 1176 daN
1200 kg
2645 lb
Maximum safe working force 588 daN
600 kg
1322 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Fixed
Side face/cheek
Orientation (upright etc) Flat
applicable vessel
Types of use Sheet spin/asym sportboats
Sheet spin/asym dinghy/dinghies
Leads
Type of boat Dinghies cruising
Dayboats cruising
Cruiser small
appearance
Primary colour name Grey
Primary colour Grey
Manufacturer secondary colour Light grey
Secondary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
