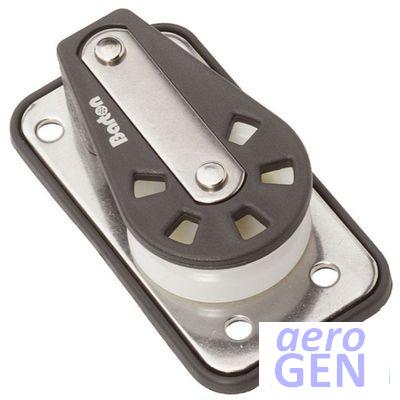

brand logo Block - Cheek Lead Deck Single Plain - Barton - 2160

Deck lead block by Barton that suits any type of yacht

Block - Cheek Lead Deck Single Plain - Barton - 2160

Related Media

media icon Dimension Set
Type of bearing BallPlain
Sheave diameter 0.787 in / 20 mm1.18 in / 30 mm1.38 in / 35 mm1.77 in / 45 mm2.28 in / 58 mm
Rope/line diameter 2-5 mm8 mm10 mm12 mm
Primary method of attachment Fixed, Cheek plate - FlatFixed, Side face - Flat
Relative size Size 0Size 1Size 2Size 3Size 4

Features

  • Rugged construction
  • High quality injection moulded side plates
  • Load carrying components made of high grade stainless steel
  • Side plates through-bolted and riveted
  • Plain nylon bearing; high load; low friction

Description

Base plate outside measurement is 79 mm x 43 mm

Attach with 1-off 5 millimetre and 2-off 4 millimetre diameter fasteners

Product Detail

item
Item type Block
Item type variant Lead deck
Item type variant detail Cheek
identity
Primary identity code for a product or service 2160
Product brand Barton
marketing
Relative size Size 2
material
Primary material simple composition Composite
Primary material composition Composite
Secondary material simple composition Stainless/SS
Secondary material composition SAE/AISI 316 EN 1.4401 A4 stainless
Sheave material composition Acetal resin
Bearing composition Brass
measurement
Overall length 3.15 in
80 mm
Spacing between attach hole centres 0.787 in
20 mm
Overall width 1.69 in
43 mm
Attachment hole centre to centre width spacing 2.28 in
58 mm
Overall depth/height 0.787 in
20 mm
Rope/line diameter 8 mm
Sheave diameter 1.38 in
35 mm
Attachment hole diameter 0.197 in
5 mm
Nett weight 0.073 kg
0.161 lb
Attachment method Fastener
Number of fasteners 4
mechanical
Average breaking force 726 daN
740 kg
1631 lb
Maximum safe working force 363 daN
370 kg
816 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Plain
arrangement
Primary method of attachment Fixed
Cheek plate
Orientation (upright etc) Flat
applicable vessel
Types of use Sheet jib dinghy/dinghies
Sheet spin/asym sportboats
Sheet spin/asym dinghy/dinghies
Sheet main yacht race
Sheet jib yacht race
Sheet genoa yacht race
Sheet main yacht
Sheet genoa yacht
Sheet spin/asym yacht
Out/downhaul yacht race
Uphaul yacht race
Out/downhaul yacht
Uphaul yacht
Leads
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
Cruiser medium
Cruiser large
appearance
Primary colour name Charcoal
Primary colour Grey
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
