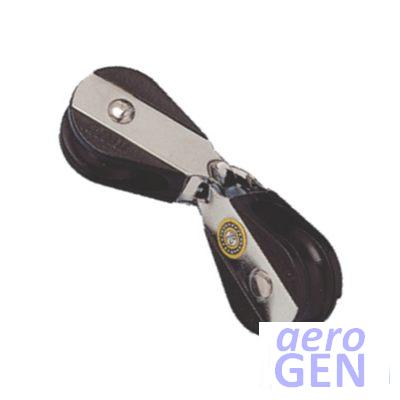

Block - Back-to-back Interlinked Single Ball Double Row - RWO - Macro - R5209

High performance and strength block with compact design

Block - Back-to-back Interlinked Single Ball Double Row - RWO - Macro - R5209

Features

  • Twin row composite ball bearing; minimal friction and long working life

Product Detail

item
Item type Block
Item type variant Interlinked
Item type variant detail Back-to-back
identity
Primary identity code for a product or service R5209
Product brand RWO
Product model Macro
material
Primary material simple composition Stainless/SS
Primary material composition Stainless steel
Sheave material composition Acetal resin
Bearing composition Stainless steel
measurement
Overall length 1.93 in
49 mm
Rope/line diameter 8 mm
Sheave diameter 1.1 in
28 mm
Nett weight 0.03 kg
0.0661 lb
mechanical
Maximum safe rolling force 137 daN
140 kg
309 lb
Average breaking force 834 daN
850 kg
1873 lb
Maximum safe working force 417 daN
425 kg
937 lb
construction
Rope type Polyester
Sheave count Single
Type of bearing Ball double row
arrangement
Primary method of attachment Eye strap
Eye strap
applicable vessel
Types of use Out/downhaul sportboats
Out/downhaul dinghy/dinghies
Vang/kicker sportboat
Vang/kicker dinghy/dinghies
Out/downhaul yacht race
Uphaul yacht race
Out/downhaul yacht
Vang/kicker yacht race
Vang/kicker yacht
Barbour hauler
Leads
Type of boat Dinghies cruising
Dayboats cruising
Dinghies/Sportsboats racing
Cruiser small
appearance
Primary colour name Black
Primary colour Black
translation
Item class in Danish Yacht blok
Item class in Dutch Yacht blok
Item class in French Voilier poulie
Item class in German Yacht-Block
Item class in Italian Yacht di blocco
Item class in Norwegian Yacht blokk
Item class in Portuguese bloco Yacht
Item class in Spanish Yacht bloque
Item class in Turkish Yat blok
Item class in Swedish Baten blocket
